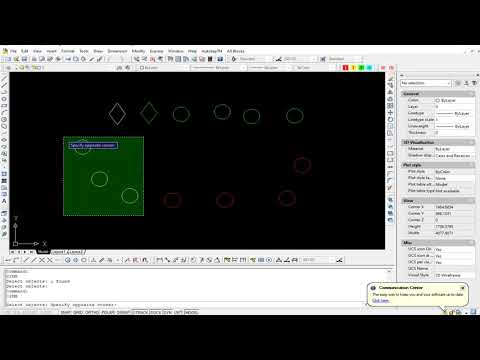

- Circle to Dimond
- Create by Songkhran Jongkul 19 March
2021
-
https://www.facebook.com/groups/AutolispTH
|;
(defun
c:c2dm ( / e i ss)
(setq
old_cmdecho (getvar
"cmdecho"))
(setq
old_osnap (getvar "osmode"))
(setq
old_layer (getvar "clayer")) ;
layer
(setvar
"cmdecho" 0)
(setvar
"osmode" 0)
(if (setq ss (ssget "_:L" '((0 .
"CIRCLE"))))
(progn
(repeat (setq i (sslength ss))
(setq e (ssname ss (setq
i (1- i)))
ly (cdr(assoc 8 (entget e))) ;layer
name
ct (cdr(assoc 10 (entget e))) ;center point
rd (cdr(assoc 40 (entget e))) ;radial
)
(command
"_erase" e "")
(setq dm1 (list (-(car
ct) rd)(cadr ct))
dm2 (list (+(car ct) rd)(cadr ct))
dm3 (list (car ct)(+(cadr ct)(* rd 1.50)))
dm4 (list (car ct)(-(cadr ct)(* rd 1.50)))
)
(setvar
"clayer" ly)
(command
"_pline" dm1 dm3 dm2 dm4 "c")
)
)
)
(setvar
"cmdecho" old_cmdecho)
(setvar
"osmode" old_osnap)
(setvar
"clayer" old_layer)
(princ)
)
(prompt
"\nEnter C2DM to start. ")
